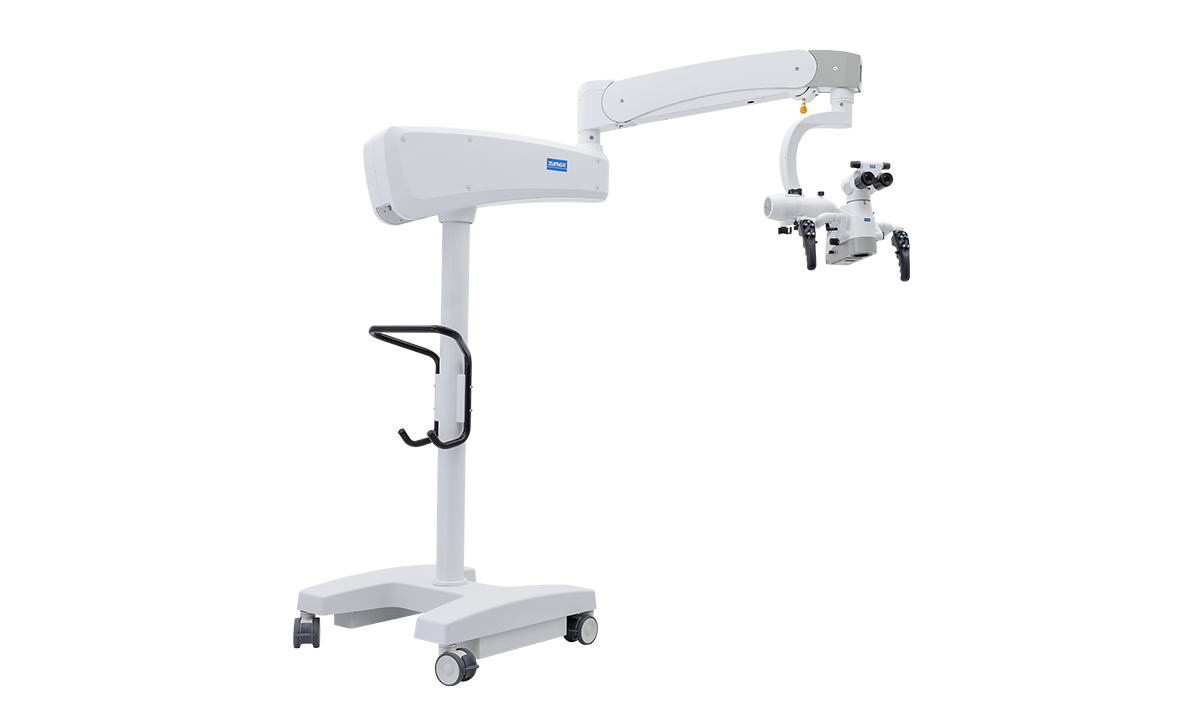

Zumax OMS3500 Surgical/Operating Microscope
The Zumax OMS3500 is a high-performance surgical microscope engineered for general surgery including ENT, offering exceptional optics, ergonomic design, and flexibility for modern operating environments. DP Medical Systems are excited to partner with Zumax to offer this high-end microscope for the Operating Room.
Key Features & Benefits
Outstanding optical performance - high-quality multilayer coated glass, apochromatic design ensures crisp, high-definition imaging, large depth of field and minimal aberration
Motorized zoom & magnification - stepless zoom (0.4 to 2.4) delivering magnification range of ~1.8 to 20 (with 12.5 eyepieces)
Variable working distance - VarioDist objective allows focusing between 200 mm and 600 mm for flexibility in different procedures
Bright, reliable LED illumination -TruLED / BriPlus lighting system delivering >100,000 lux (and up to >200,000 lx at 250 mm) with excellent color reproduction (CRI 92)
Backup & auto-boost illumination - dual LED backup ensures continuous light even if main source fails; intensity auto-boost ( +30%) at higher magnification

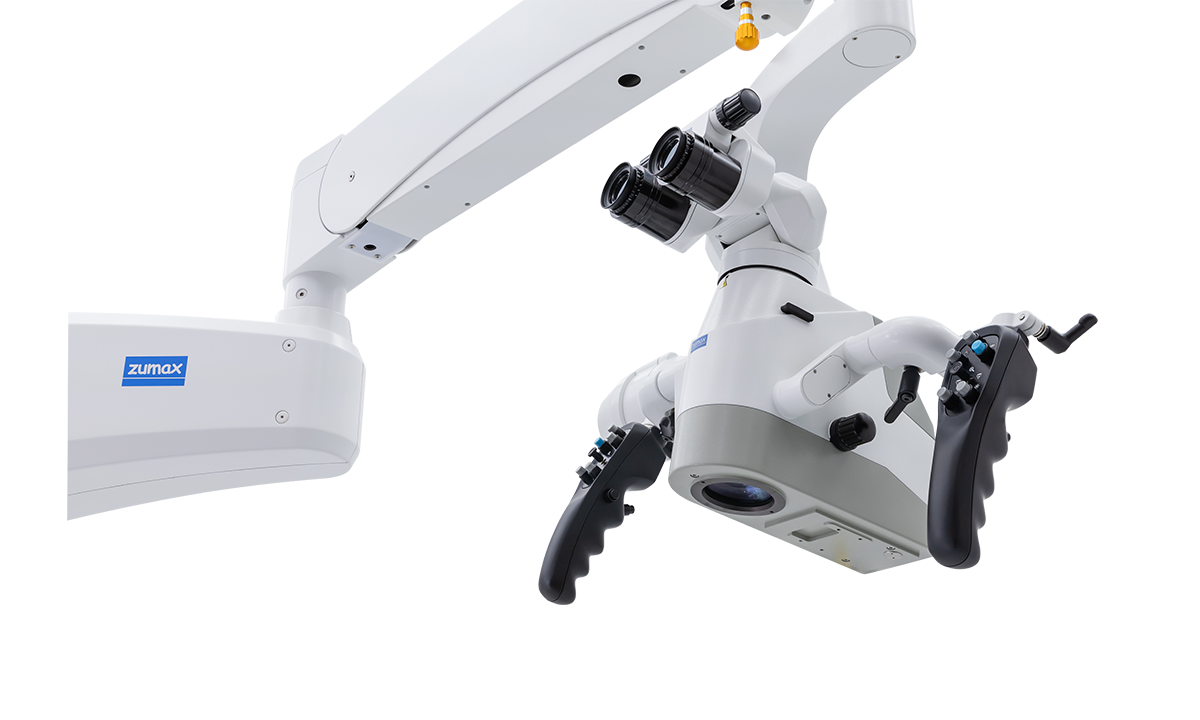

User-friendly control & ergonomics - FreeMov electromagnetic braking (6 brakes), multifunction handles (zoom, focus, lighting, capture controls), and SmartMon LCD display showing working distance, zoom level, brightness
Compact & mobile design - compact metal stand footprint (630, 630 mm), long arm reach, good manoeuvrability in crowded ORs

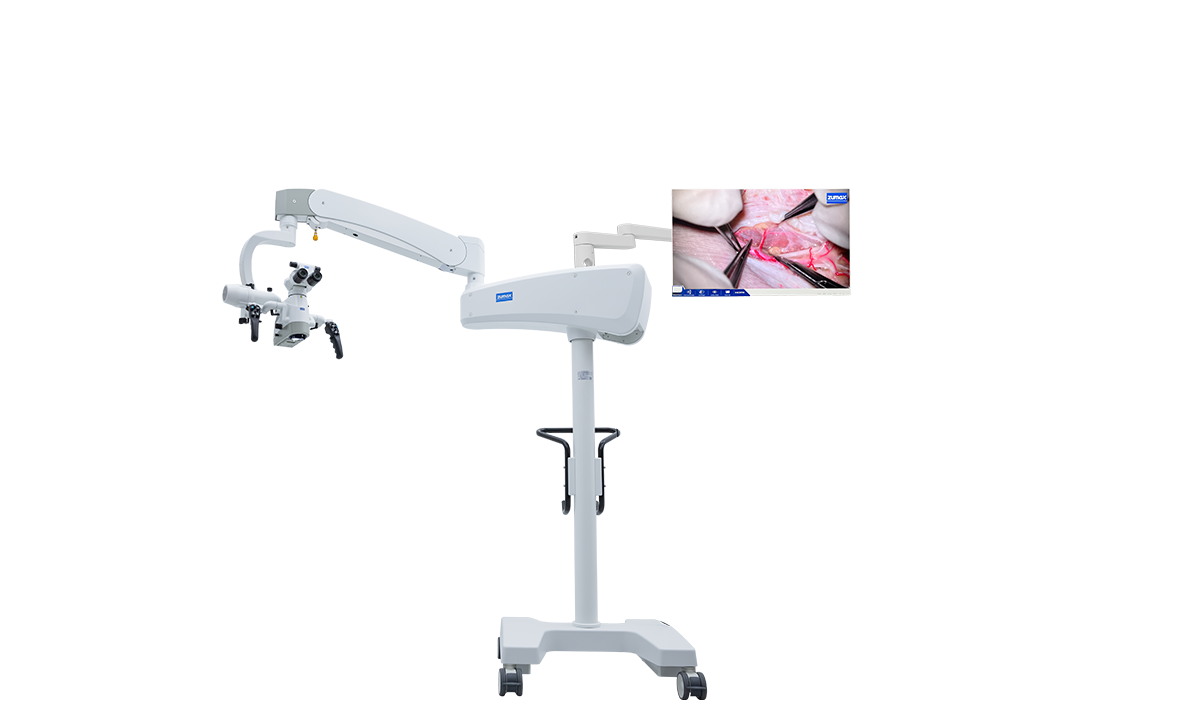

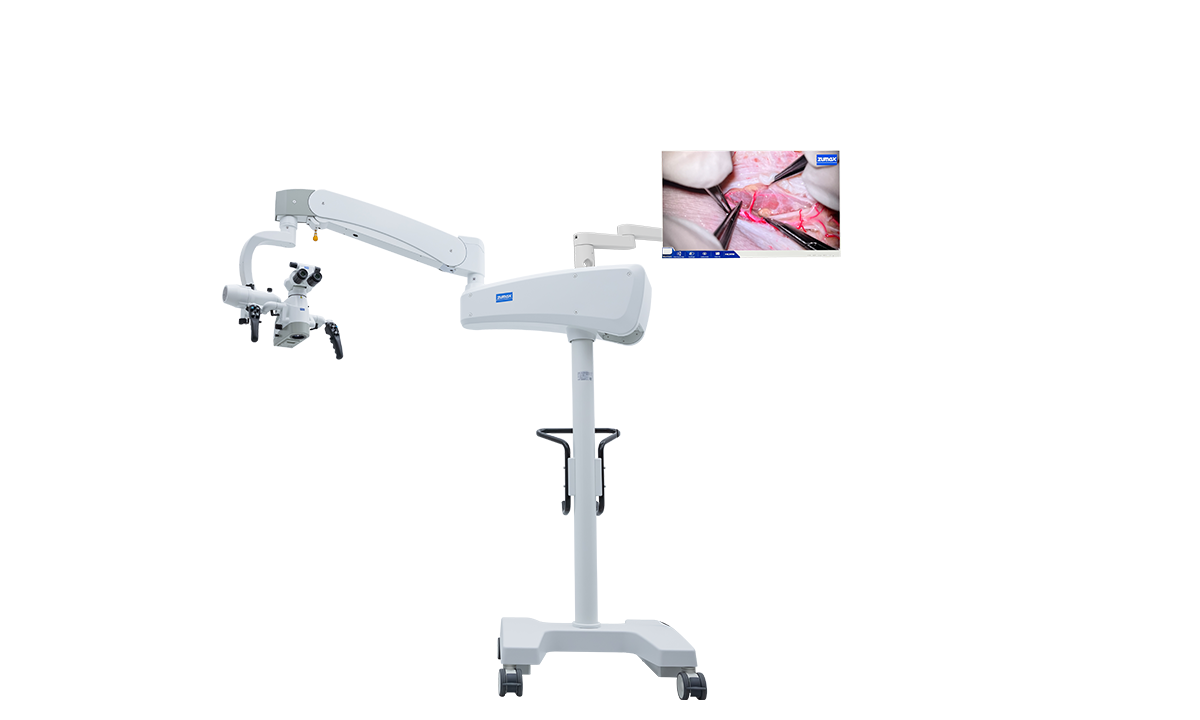

Camera & imaging integration (optional) 4K video capture modules and image handling systems (wired or wireless) can be integrated for documentation or teaching
Integrated filters & safety built-in yellow / green filters, anti-reflection modules, optional laser protection filters (for 488, 514, 660, 800,830, 980, 1064 mm)
